Specification
| Weight Capacity | 21 Stone 6 lbs (136 kg) |
| Maximum Speed | 4 mph (6 km/h) |
| Ground Clearance | 3.4 cm (1.3″) |
| Overall Length | 102.2 cm (40.2″) |
| Overall Width | 49 cm (19.2″) |
| Turning Radius | 138.5 cm (54.4 cm) |
| Standard Controls | n/a |

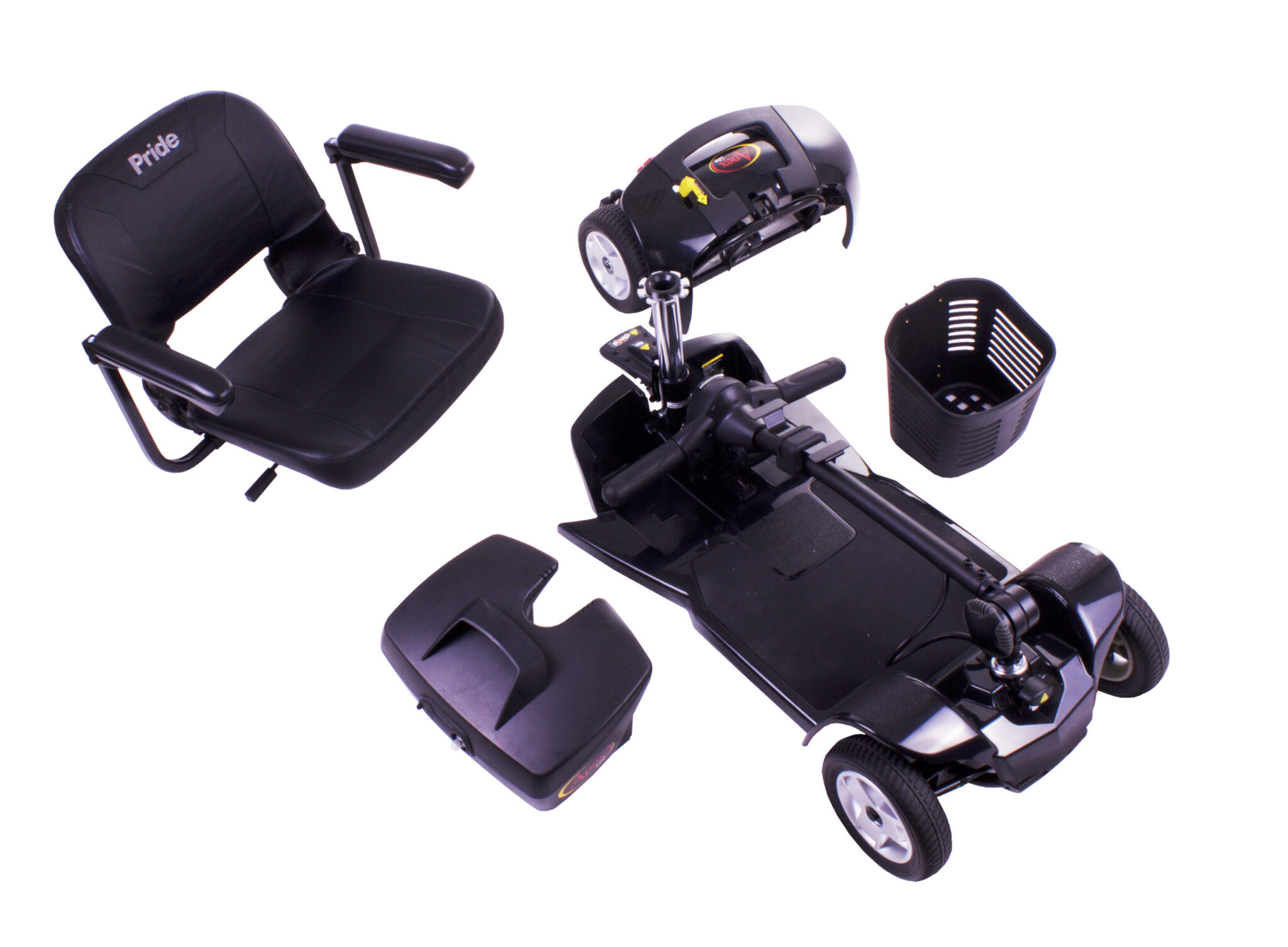

| Heaviest Piece (when disassembled) | 15 kg Front Section |
| Total Weight (without batteries) | 36.9 kg |
| Seating | Foldable, Compact. |
| Tyres | Front: 20 cm Rear: 20 cm |
| Suspension | None |

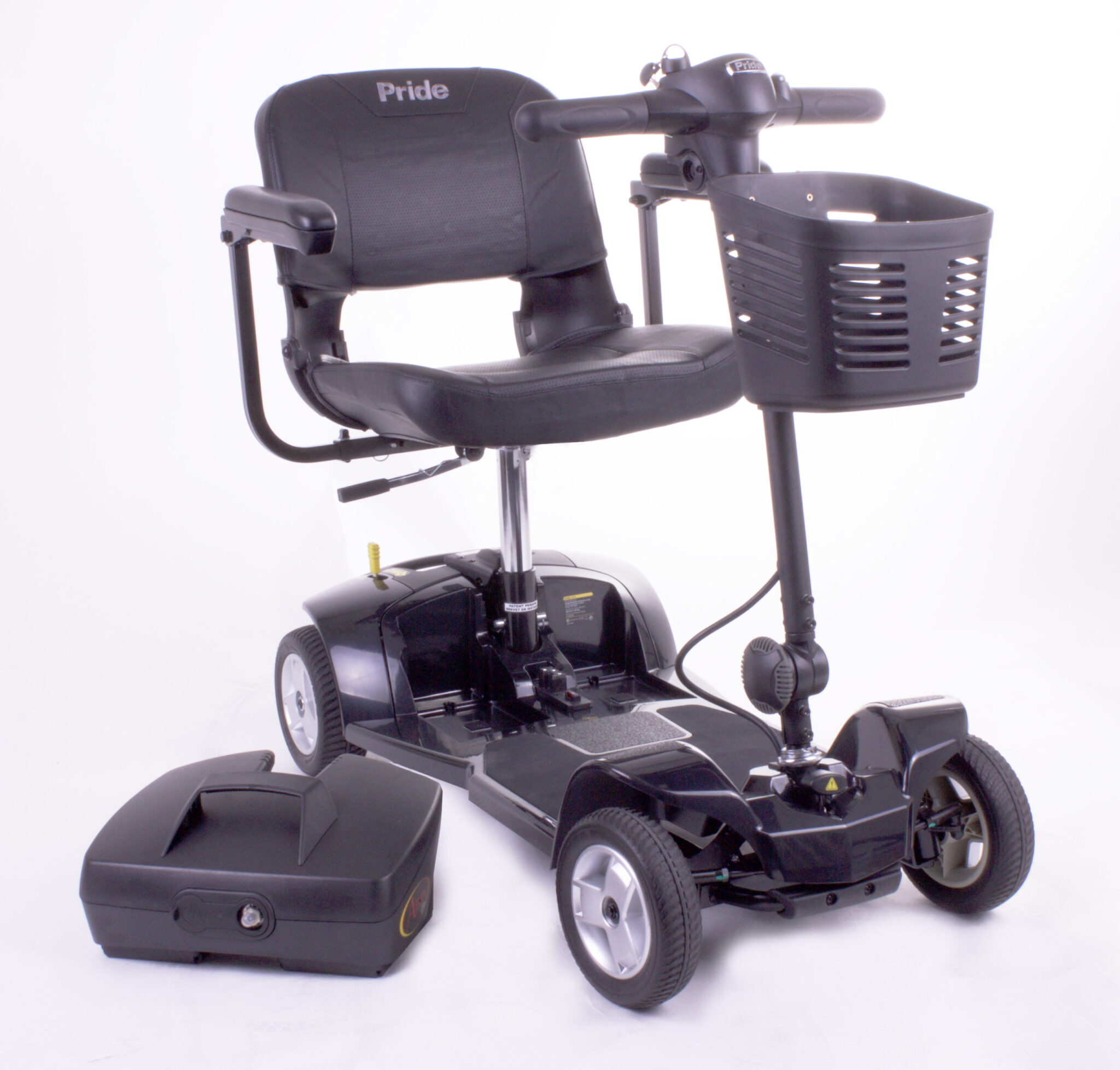

| Battery Requirements | Two 12-volt, deep cycle (standard) Size: 2 x 12 AH |
| Battery Weight (each) | 9.07 kg |
| Note | 1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
| Weight | 46 kg |
|---|---|
| Dimensions | 105 × 50 cm |

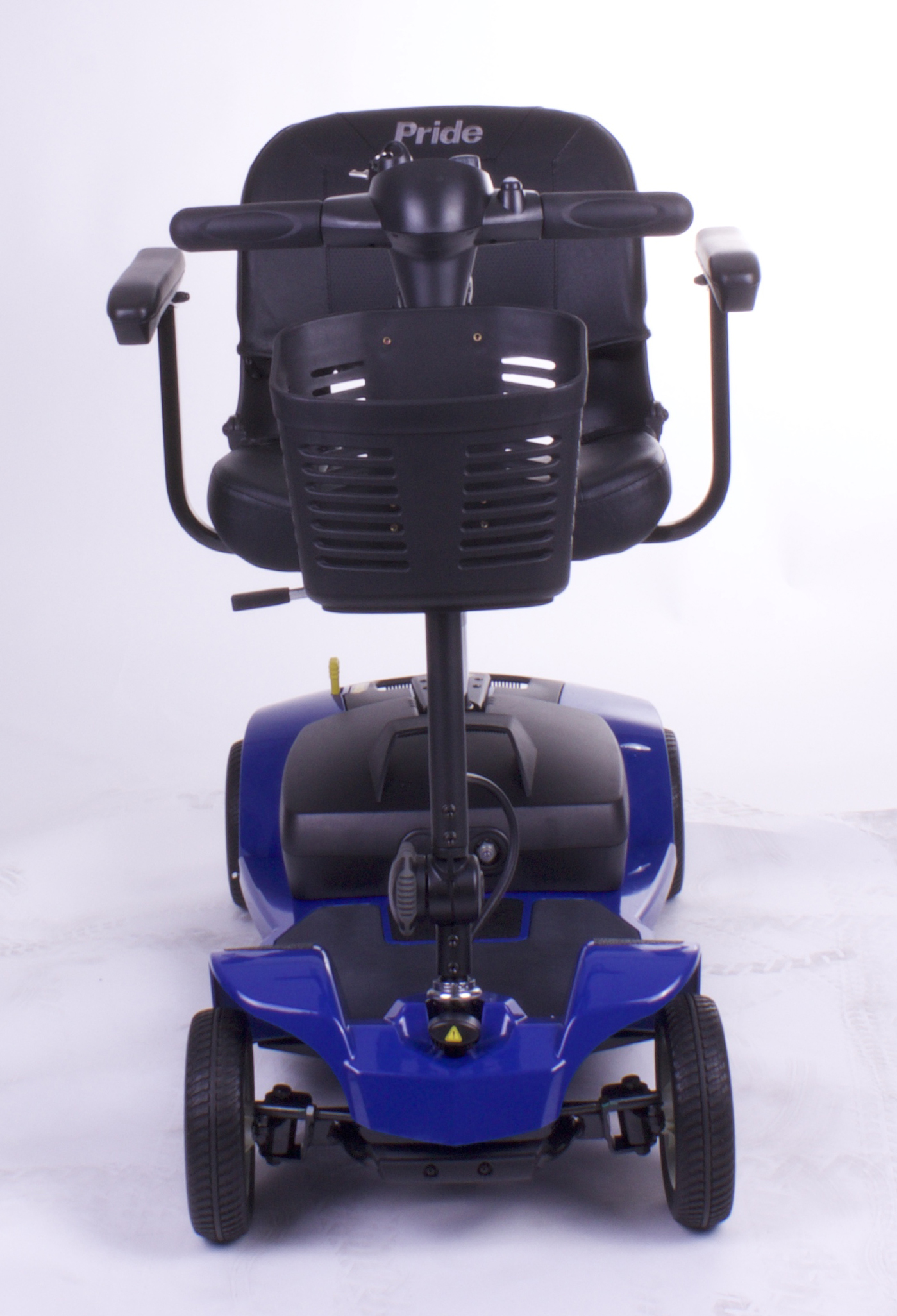

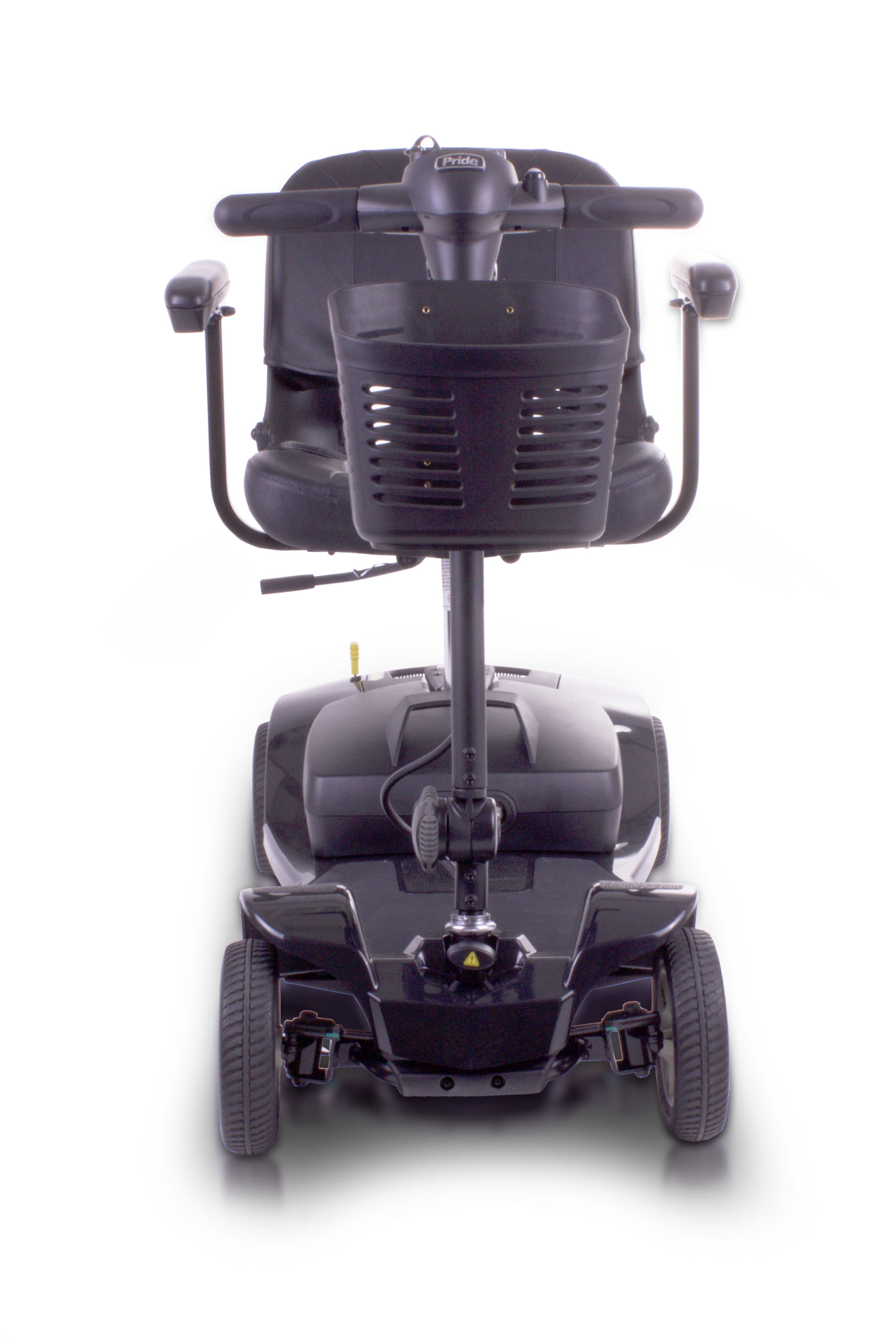

| colour | Black, Blue, Red |
