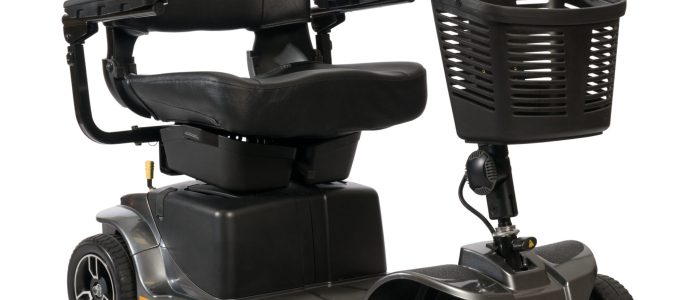

Revo 2.0
Specification
| Weight Capacity | 26 stone 7lbs (170.09kg) |
| Maximum Speed | 4 mph (6.4 km/h) |
| Ground Clearance | 3.17cm (1.25 inches) |
| Overall Length | 119.38cm (47 inches) |
| Overall Width | 53.34cm (21 inches) |
| Turning Radius | 132.08 (52 inches) |
| Standard Controls | – |
| Heaviest Piece (when disassembled) | 25.85kg Rear section |
| Total Weight (without batteries) | 9.35 stone (59.4kg) |
| Seating | Standard seating – Folded Seat 12kg |
| Tyres | Front: 22.86cm Rear: 22.86cm |
| Suspension | Comfort Trac – Front & rear suspension |
| Battery Requirements | x2 35Ah deep cycle |
| Battery Weight (each) | 5.75kg (12.5lbs) |
| Note | 1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
